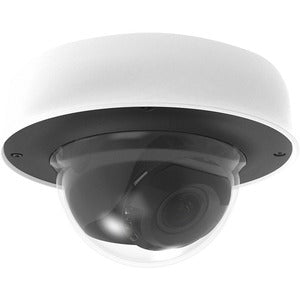

Cisco Meraki MV72 Outdoor Dome Camera

Name: Cisco Meraki MV72 Outdoor Dome Camera
Brand: Cisco Meraki
SKU: MV72-HW
Price: 1506.5 USD
Availability: InStock

MFG SKU: MV72-HW

Dome cameras are unobtrusive, vandal-resistant, and simple to install.

Max Days of Retention

MV Enterprise License and Support

1 Day $1.16

1 Year

3 Year

5 Year

7 Year

10 Year

Quantity:

In stock

Regular price $1,507.66

Tax included

Shipping calculated at checkout

Cloud Storage & Accessories

Product Specifications

Camera

Sensor	1/3” 4MP (2688x1520) progressive CMOS image sensor
Lens	Varifocal

Onboard Storage	256GB high-endurance solid-state storage (MV72) 512GB high-endurance solid-state storage (MV72X)
Focal Length	3-9 mm focal length

Aperture	f/1.2-2.3 aperture
Field of View	Horizontal 36-112°, Vertical 20-57°, Diagonal 42-138°

Shutter Speed	1/30 second to 1/32,000 second shutter speed
Warranty	Five-year hardware warranty with advanced replacement

Illumination	Minimum illumination 0.18 lux (standard recording) and 0.01 lux (night mode) Built-in IR illuminators, effective up to 30 m (98 ft)
Heating	Heating elements

Video

Resolution and Frame Rate	1080p HD video recording (1920x1080) with H.264 encoding up to 20fps (MV72) 4MP recording with H.264 encoding up to 15fps (MV72X)
HDR	High dynamic range

Edge Storage	Cloud-augmented edge storage (locally stored video; metadata in the cloud)
Retention	Optimized retention settings (scheduling, motion-based) for variable retention

Live Streaming	Direct live streaming with no client software (native browser playback)^*
Storage Duration	Up to 90 days (MV72X) of 24/7 continuous video storage per camera

Streaming	Stream video anywhere with automatic cloud proxy
Audio Recording	Audio recording supported with built-in microphone

Networking and Wireless

Ethernet	1x 10/100/1000BASE-T Ethernet (RJ45)
Marking	DSCP traffic marking

Frequency Band: 2.4 GHz 802.11b/g/n radio	2.412 - 2.484 GHz
Frequency Band: 5 GHz 802.11a/n/ac radio	5.150 - 5.250 GHz (UNII-1) 5.250 - 5.350 GHz (UNII-2) 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) 5.725 - 5.825 GHz (UNII-3)

Data Stream	1x1 with one spatial stream
MU-MIMO Support	20 and 40 MHz channels (802.11n) 20, 40, and 80 MHz channels (802.11ac)

Higher Data Rates	Up to 256 QAM on 5 GHz band
Antennas	Integrated omnidirectional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)

Bluetooth	2.4 GHz Bluetooth® low energy radio

Power and Environment

Power Consumption	25.5W maximum via 802.3at PoE
Temperature	-40°C to 50°C (-40°F to 122°F)

Data and Network Security

Encryption	Full disk encryption (AES 256-bit)
Certificates	Automatically purchased and provisioned TLS certificates (publicly signed)

Security	Management encryption and two-factor authentication
Wireless Security	WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption

Physical Characteristics

Dimensions	165 mm x 103 mm (diameter x height)
Weight	1,247 grams

Lens	Varifocal
Ethernet Connection	Female RJ45 Ethernet connector

Status Indicator	Multicolor, multifunction status LED
Switches	External microphone switch, Reset button

Hardware	MV72-HW: Varifocal outdoor dome camera with 256GB Storage MV72X-HW: Varifocal outdoor dome camera with 512GB Storage
In the Box	Quick start & installation guide MV camera hardware Wall-mounting kit

View less ↑ View more >

Product Resources

MV72 Datasheet MV Family Datasheet MV Cloud Datasheet
