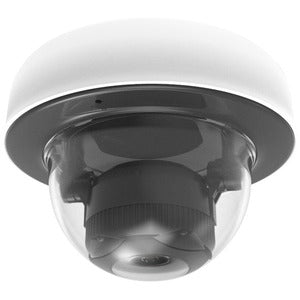

Cisco Meraki MV12 Mini Dome HD Camera

Name: Cisco Meraki MV12 Mini Dome HD Camera
Brand: Cisco Meraki
SKU: MV12WE-HW
Price: 803.0 USD
Availability: InStock

MFG SKU: MV12WE-HW

Dome cameras are unobtrusive, vandal-resistant, and simple to install.

Max Days of Retention

MV Enterprise License and Support

1 Day $1.16

1 Year

3 Year

5 Year

7 Year

10 Year

Quantity:

In stock

Regular price $804.16

Tax included

Shipping calculated at checkout

Cloud Storage & Accessories

Product Specifications

Camera

Sensor	1/3” 4MP (2688x1520) progressive CMOS image sensor
Lens	Fixed

Onboard Storage	128GB high endurance solid state storage (MV12WE) 256GB high endurance solid state storage (MV12N and MV12W)
Focal Length	2.8mm focal length (MV12W and MV12WE) 3.8mm focal length (MV12N)

Aperture	f/1.8 aperture
Field of View	Horizontal 114°, Vertical 61°, Diagonal 132° (MV12W and MV12WE) Horizontal 73°, Vertical 44°, Diagonal 86° (MV12N)

Shutter Speed	1/30 second to 1/32,000 second shutter speed
Warranty	Five-year hardware warranty with advanced replacement

Minimum Illumination	Minimum illumination 0.18 Lux (standard recording) and 0.01 Lux (night mode)
IR	Built-in IR illuminators, effective up to 15m (49ft)

Video

Resolution and Frame Rate	1080p HD video recording (1920x1080) with H.264 encoding up to 20fps
HDR	High dynamic range

Edge Storage	Cloud-augmented edge storage (locally stored video; metadata in the cloud)
Retention	Optimized retention settings (scheduling, motion-based) for variable retention

Live Streaming	Direct live streaming with no client software (native browser playback)^*
Storage Duration	Up to 40 days of 24/7 continuous video storage per camera

Streaming	Stream video anywhere with automatic cloud proxy
Audio Recording	Audio recording supported with built-in microphone

Networking and Wireless

Ethernet	1x 10/100/1000BASE-T Ethernet (RJ45)
Marking	DSCP traffic marking

Frequency Band: 2.4 GHz 802.11b/g/n radio	2.412 - 2.484 GHz
Frequency Band: 5 GHz 802.11a/n/ac radio	5.150 - 5.250 GHz (UNII-1) 5.250 - 5.350 GHz (UNII-2) 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) 5.725 - 5.825 GHz (UNII-3)

Data Stream	1x1 with one spatial stream
MU-MIMO support	20 and 40 MHz channels (802.11n) 20, 40, and 80 MHz channels (802.11ac)

Higher Data Rates	Up to 256 QAM on 2.4 GHz and 5 GHz band
Antennas	Integrated omni-directional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)

Bluetooth	2.4 GHz Bluetooth Low Energy (BLE) radio

Power and Environment

Power Consumption	12.95W maximum via 802.3af PoE
Temperature	0°C to 40°C (32°F to 104°F)

Data and Network Security

Encryption	Full disk encryption (AES 256-bit)
Certificates	Automatically purchased and provisioned TLS certificates (publicly signed)

Security	Management encryption and two-factor authentication
Wireless Security	WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption

Physical Characteristics

Dimensions	106mm x 74mm (diameter x height)
Weight	286 grams

Lens	Fixed
Ethernet Connection	Female RJ45 Ethernet connector

Status Indicator	Multicolor, multifunction status LED
Buttons	Reset button

Hardware	MV12N-HW: 256GB Narrow Angle Mini Dome Camera MV12W-HW: 256GB Wide Angle Mini Dome Camera MV12WE-HW: 128GB Wide Angle Mini Dome Camera
In the Box	Quick start & installation guide MV camera hardware Wall mounting kit

View less ↑ View more >

Product Resources

MV12 Datasheet MV Family Datasheet MV Cloud Datasheet

Cisco Meraki Dome Series

Cisco Meraki Dome Security Cameras offer high-definition video, advanced motion detection, and cloud-based management, making them an ideal solution for modern surveillance needs.

EXPLORE MODELS

Dome Cameras Include

Adaptive Quality

Person of Interest Alerts

Unlimited Cloud Archiving

5-year Product Warranty

30-Days Cloud Backup

Automatic Firmware & Software Updates

AI-Based Video Analytics

Live-Link Sharing

Cisco Meraki connector mounted on a building next to an ocean.

WHY CISCO MERAKI?

Cisco Meraki offers reliable, cloud-managed security solutions that streamline physical and building security with advanced features like AI-powered video analytics and seamless integration. With easy scalability, robust data encryption, and 24/7 remote monitoring, Meraki ensures comprehensive protection for modern organizations.

LEARN MORE

INSTANT DEMO

Discover how easy it is to enhance protection and simplify operations with Cisco Meraki’s innovative technology. Experience powerful cloud-managed security solutions firsthand, for free.
